Microcontroller with smart charge logic maximises battery cells performance

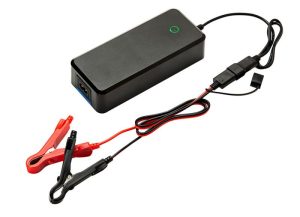

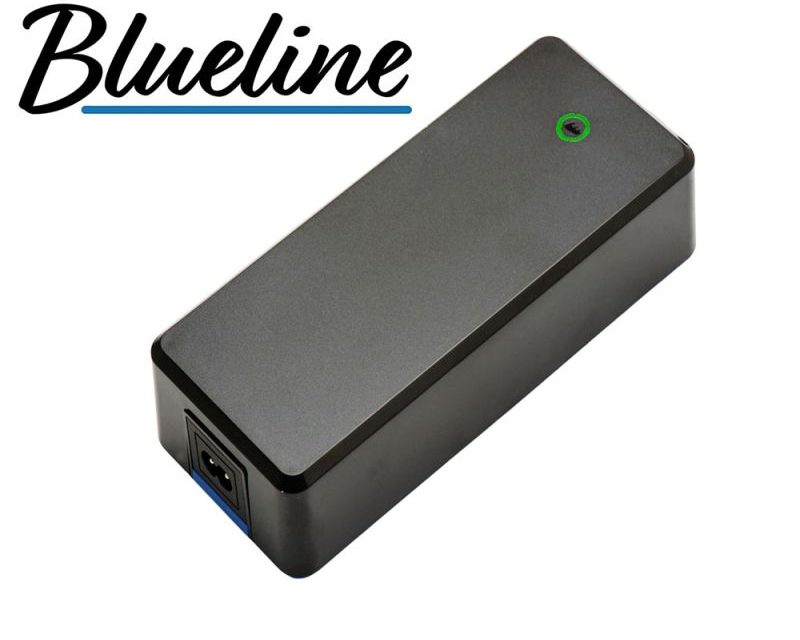

Power design specialist Mascot proudly introduces its latest innovation: the Model 4340, a next-generation, high-performance battery charger designed for Lead Acid, Li-Ion, LiFePO4, and NiMH batteries.
Engineered for maximum performance and reliability, the 4340 employs a microcontroller-managed three-stage charging profile, optimising battery life and runtime. It also features smart wake-up capabilities for deeply discharged batteries and soft-start charging, delivering low current until normal voltage levels are restored – critical for preserving battery health.
Ideal for demanding sectors such as medical technology, telecom, energy storage, and E-Mobility, the 4340 ensures fast, safe, and efficient charging. With certifications including EN 60601-1 ed. 3.2, EN 60601-1-11 (Home Healthcare), and UL approval, it meets the highest standards for medical and professional-grade use.
The charger is fully customisable via Mascot’s Configurable Battery Charger (CBC) toolkit, allowing users to easily set charge parameters through a PC interface. Configuration can also be done in the field. A range of custom options – including connectors, cords, IP-rated enclosures, open frame formats, branding, and additional certifications—is available upon request. The 4340’s advanced three-stage process restores full battery voltage, provides saturation charging to maximise capacity, and automatically stops when the battery is fully charged – ensuring peak performance and extended runtime. A three-colour LED indicator offers intuitive feedback for charging, error, and standby status. An optional wall-mount bracket enhances installation flexibility.
With its combination of versatility, reliability, intelligent charging, and certifications to the most stringent safety & EMC norms, the 4340 sets a new standard for professional battery charging.
Key technical specifications of the 4340:
- Charger versions: Lead acid, Li-Ion, LiFePO4, NiMH batteries
- Max output power: 80 W
- AC input voltage: 90-264VAC
- Safety standards:
Medical EN 60601-1 ed. 3.2
Home Health Care EN 60601-1-11
Battery Charger EN 60335-2-29.
A/V and Comm. tech: IEC 62368-1 - EMC standards:
EN 55014-1 and –2
Emission EN 61000-6-3
Immunity EN 61000-6-1,
Medical EN 60601-1-2 - Input terminal: 2-pin IEC60320 (C8) std., 3-pin or fixed mains cord on request
- IP-grade: 4X (AC inlet) or 44 (fixed mains cord)
- Weight: 400g
- Dimensions: 172.5 × 73 × 42 mm
